Outlets

Plain-English summary

Outlets are your physical restaurant locations — each with its own registers, kitchens, floor/table layout, service toggles (dine-in, delivery, takeout), online-ordering switch, bank details, opening hours, logo and payment QR. An organisation can have multiple outlets; they share master data (items, customers, suppliers) but run their own sessions and stock. In the admin backoffice the Outlets page shows one tab per outlet, and each tab stacks the outlet's details plus its Registers, Kitchens, Services, Floor layout and Bank details sections. An outlet with active registers cannot be deleted.

When you'd use this

• Onboarding a new branch — create the outlet, add registers, kitchens and tables, switch on services
• Managing per-outlet settings: opening hours, default warehouse, logo, payment QR, managers
• Turning delivery/takeout/online ordering on or off per location
• Multi-site reporting — outlets are the grouping key

How to access

• Admin backoffice (canonical): /settings/restaurant/outlets — page "Outlets" ("Manage your physical and virtual outlets."), sidebar Settings → Outlets group → Outlets (settingsNavConfig.ts group outlets). [code: foodops-admin-app/apps/admin/src/pages/settings/restaurant/OutletsPage.tsx; settingsNavConfig.ts]
• Legacy back-office (RETIRED at July-2026 launch): the old app.foodops.io Settings → Restaurant Outlets (haafai.app.foodops) is gone — the admin backoffice is the only surface.
• API: api/settings/restaurant/... on the sales service — outlets plus all their child resources. [code: hubits-api-sales/Hubits.Sales.Api/Controllers/RestaurantSettingsController.cs (present on main, ~115 KB)]

Walkthrough

Verified against foodops-admin-app@77ec95f + hubits-api-sales@5d917e5.

Creating / editing an outlet

1. Settings → Outlets → Add outlet (empty state: "Add your first outlet to start taking orders."). [code: OutletsPage.tsx:98-113]

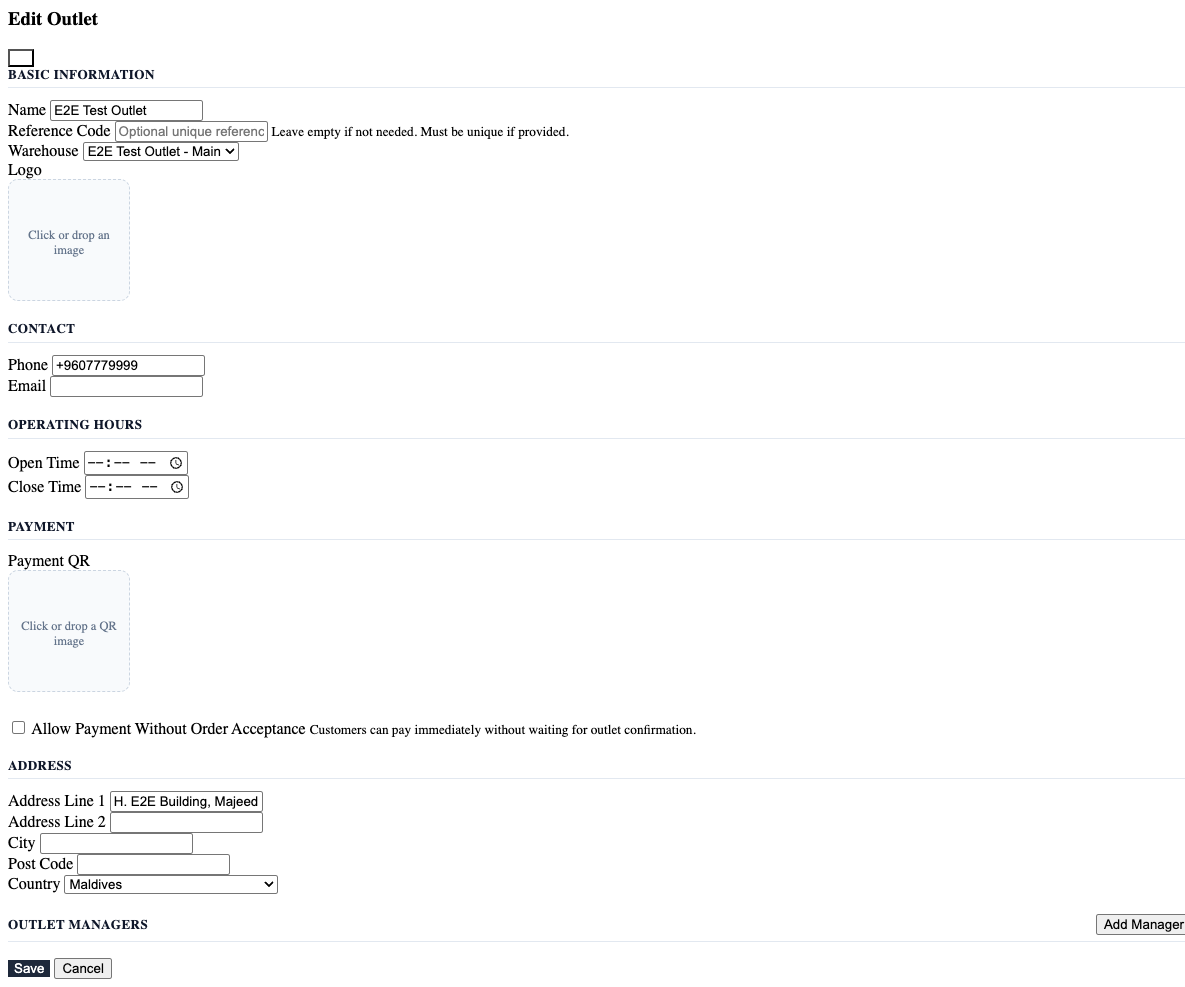

2. The form collects: Name, Reference code, Phone, Email, Default warehouse (dropdown), Opens/Closes times, address (Street / City / Postcode), Logo upload and Payment QR upload, plus outlet managers (user assignments). [code: OutletFormDialog.tsx:205-381; outletSettingsService.ts:21-59]
3. Save — multipart POST/PUT /api/settings/restaurant/outlets[/{id}]; logo and QR can also be removed via RemoveLogo/RemovePaymentQR flags. [code: outletSettingsService.ts:103-114; RestaurantSettingsController.cs:1530,1611]

The outlet detail tab

Each outlet tab stacks seven sections [code: OutletDetailPanel.tsx]:

1. Outlet details — the profile, with Edit and Delete. Delete is disabled while the outlet has active registers ("Outlet has active registers"); the API enforces the same: "Outlet has active registers. Please close and delete all registers before deleting the outlet." [code: OutletDetailPanel.tsx:62-63; RestaurantSettingsController.cs:1402-1414] NEW 2026-07: the details card now shows an outlet-type badge (Store icon + type label) — deterministically "Restaurant" for FoodOps outlets, since the label resolver returns "Retail" only when outletTypeId === OUTLET_TYPE_RETAIL and "Restaurant" otherwise. [code: foodops-admin-app/apps/admin/src/components/settings/restaurant/OutletDetailsSection.tsx — badge render (Store icon + outletTypeLabel); apps/admin/src/services/outletService.ts — outletTypeLabel(): outletTypeId === OUTLET_TYPE_RETAIL ? 'Retail' : 'Restaurant' (added d4ac7b5..395decb)]
2. Registers — the outlet's sales registers (create/edit/delete via api/settings/restaurant/registers...; a register with unclosed sessions is the blocker for outlet deletion). See Sales Registers. [code: RestaurantSettingsController.cs:2093-2469]
3. Kitchens — kitchen stations for KOT routing (kitchens CRUD). [code: RestaurantSettingsController.cs:186-320]
4. Services — three toggles: Dine-in ("Enable dine-in orders for this outlet"), Delivery, Takeout; Delivery and Takeout each pick the register that owns that service's orders (service-table-register / update-service-table-register, toggle via outlets/toggle-order-type). [code: ServicesSection.tsx:30-50,111-113; RestaurantSettingsController.cs:1817-2090]
5. Floor layout — floors with a drag-and-drop FloorCanvas of tables (table templates for quick adds), saved via tables/layout; the QR codes button opens the per-table QR modal for table ordering. [code: FloorLayoutSection.tsx; RestaurantSettingsController.cs:507-636; QRCodesModal.tsx]
6. Bank details — per-outlet bank accounts with set-primary and active toggles (outlet-bank-details...). [code: RestaurantSettingsController.cs:1037-1280]
7. Reference number configuration — a "Use Unique Reference Numbers" toggle that switches the outlet from org-wide numbering to its own sequences, plus per-outlet prefixes for Invoice, Credit Note, Payment and Quotation documents, a starting number, and a sequence-reset action. [code: ReferenceNumbersSection.tsx]

Note: Outlet types in the shared admin app (NEW 2026-07) The Outlets settings list is now brand-scoped by outlet type: the FoodOps admin fetches only restaurant-type outlets — getBrandOutletTypeId() returns OUTLET_TYPE_RESTAURANT (= 2) for every non-salesmade brand — and stamps that type onto newly created outlets. Retail (Salesmade) outlets additionally hide the Kitchens / Services / Floor-layout sections, so FoodOps outlets keep all the sections documented above — this walkthrough is confirmed by the change, not contradicted. [code: foodops-admin-app/apps/admin/src/services/outletService.ts — getBrandOutletTypeId(): getBrand().id === 'salesmade' ? OUTLET_TYPE_RETAIL : OUTLET_TYPE_RESTAURANT (added d4ac7b5..395decb); OutletsPage.tsx — outletSettingsService.list(organisationId, getBrandOutletTypeId()); OutletFormDialog.tsx — outletTypeId: editForm.outlet.outletTypeId ?? getBrandOutletTypeId(); OutletDetailPanel.tsx — isRetail = outlet.outletTypeId === OUTLET_TYPE_RETAIL gating]

Online ordering switch

The outlet's online orders toggle (POST outlets/{outletId}/toggle-online-orders) flips IsAcceptingOnlineOrders and broadcasts OutletOnlineOrdersToggled over SignalR so counters react live. [code: RestaurantSettingsController.cs:1949-1981; foodops.counter.app signalRService.ts:299-301]

Key concepts

• Outlet = location scope — sessions, registers, kitchens, floors/tables, delivery sectors, bank details and business-day windows all hang off the outlet; items/customers/suppliers are org-wide.
• Service toggles per outlet — dine-in/delivery/takeout are enabled per outlet (driving which order-type buttons the POS shows); delivery and takeout are anchored to a chosen register. [code: ServicesSection.tsx; POSPage orderButtonConfig]
• Delete guard — outlets with active registers can't be deleted; delete registers (after closing their sessions) first. [code: RestaurantSettingsController.cs:1402-1414]
• Default warehouse — links the outlet to the stock location its sales deduct from / receives default to. [code: OutletFormDialog.tsx:250-260]
• Business-day window — outlet opening hours feed the business-day range used by the Dashboard and reports (late-night trade lands on the right day). [code: hubits-api-sales ClientAppDashboardController.cs:48-54]
• Logo & payment QR — the outlet logo brands receipts/ordering surfaces; the payment QR renders for QR-payment flows. Both upload AJAX-style with drag-and-drop on both surfaces (legacy refactor ee5fa8c).

Common questions

Q: How many outlets can an organisation have? A: No limit found in current code; the page renders one tab per outlet.

Q: Why can't I delete an outlet? A: It still has active registers — close their sessions and delete the registers first; both the UI and API enforce this. [code: RestaurantSettingsController.cs:1413]

Q: How do I enable delivery for one branch only? A: Open that outlet's tab → Services → toggle Delivery on, and pick the register that owns delivery orders. Other outlets are unaffected.

Q: What does the register picker under Delivery/Takeout do? A: Those services' orders are anchored to a specific register (the service register), so their sessions and cash land somewhere deterministic. [code: ServicesSection.tsx:111-113; RestaurantSettingsController.cs:2000-2090]

Q: How do per-table QR codes work? A: Floor layout → QR codes — the modal lists QR codes per table for the table-ordering flow on the online ordering site. [code: QRCodesModal.tsx]

Q: Can an outlet have its own menu? A: Menu groups are organisation-scoped in the current API — per-outlet menu assignment was not found in current code as of 2026-06-11. See Menu Groups.

Q: What is the Reference code for? A: A short outlet identifier used in references/outlet codes (e.g. the ordering site's outlet-code entry); keep it short and unique.

Q: Who can manage outlets? A: Admin-app users behind the standard protected routes; outlet managers can be assigned on the form (the OutletManagers[] payload), giving per-outlet responsibility. [code: outletSettingsService.ts:21-27]

Q: Do opening hours close the POS automatically? A: No evidence of enforcement — Opens/Closes define the business-day window for reporting; they don't lock registers (not found in current code as of 2026-06-11).

Q: What happens when I toggle online orders off? A: IsAcceptingOnlineOrders flips immediately and a SignalR broadcast tells connected counters; the ordering site stops accepting orders for that outlet. [code: RestaurantSettingsController.cs:1949-1981]

Q: Can I run a virtual outlet (no physical floor)? A: Yes — the page subtitle explicitly covers "physical and virtual outlets"; skip floors/tables and enable only the services you need.

Q: Where do delivery sectors fit? A: Delivery sectors (zones with charges) are restaurant-settings resources alongside outlets (delivery-sectors CRUD) and are picked on delivery orders — see Deliveries. [code: RestaurantSettingsController.cs:749-863]

Edge cases and known issues

• Delete order matters — sessions → registers → outlet; attempting out of order returns the active-registers error.
• Logo/QR upload quirk (legacy) — the old form's drop zones ("Click or drop an image" / "Click or drop a QR image") were introduced in ee5fa8c; older screenshots show the pre-AJAX upload.
• One surface now — the legacy Settings → Restaurant Outlets pages are retired at the July-2026 launch; the admin app is the only outlet-config surface (both wrote the same outlet records via the sales-service API).
• Floor canvas saves the whole layout — table positions persist via a bulk tables/layout POST; concurrent edits from two admins are last-write-wins. [code: RestaurantSettingsController.cs:636]

What changed since 2026-04-15 (NEW 2026-05)

• Outlet image upload refactored to AJAX (commit ee5fa8c, 2026-04-22) — logo and payment-QR uploads on the outlet add/edit form now use dedicated AJAX endpoints (UploadLogo / RemoveLogo / UploadPaymentQR / RemovePaymentQR) with drag-and-drop support and immediate feedback. The old IFormFile-based form-post upload path was removed from RestaurantOutletsController and AddEditOutlet view model. Verified 2026-05-04: the edit form shows a Logo drop zone ("Click or drop an image") and a Payment QR drop zone ("Click or drop a QR image") in separate sections.
